Overview

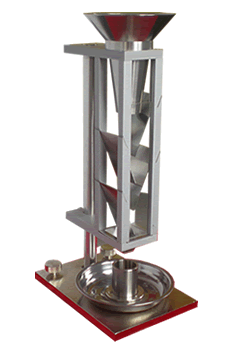

AS-200 Scott Volumeter is a typical bulk density tester being widely used in powder testing applications. It determines bulk density of free-flowing powders according to international standards

- ISO 3923 - 2 Metallic powders - Determination of apparent density - Part 2: Scott volumeter method
- USP Chapter 616 Bulk Density and Tapped Density of Powders BULK DENISTY Method II - Measurement in a Volumeter
- ASTM B 329 Standard Test Method for Apparent Density of Metal Powders and Compounds Using the Scott Volumeter

It is used to test the bulk density of free-flowing powders such as metallic powders, refractory metals,compounds, paint,pigment, etc.
AimSizer offers standard scott volumeters and complete stainless steel scott volumeters, both are made of robust and seleted metals.

scott-volumeter-bulk-density-tester-images-and-pictures/as-200-scott-volumeter-and-bulk-density-tester-price-suppliers.gif
AS-200-Scott-Volumeter-price-suppliers-manufacturers

scott-volumeter-bulk-density-tester-images-and-pictures/as-200-scott-volumeter-bulk-density-tester-apparent-denisty-meter-density-cup-and-overflow.gifpowder-testers-images-and-pictures/as-200-scott-volumeter-bulk-density-tester-apparent-denisty-meter-level-bubble.gifscott-volumeter-bulk-density-tester-images-and-pictures/as-200-scott-volumeter-bulk-density-tester-apparent-denisty-meter-top-glass-view.gif
Back to Top

User Buy Together
AS-2011 Laser Particle Size Analyzer - measures particle size distribution by laser diffraction
HMK-22 Fisher Sub Sieve Sizer - measures average particle size by air permeability
HMK-CD7 Image Particle Size Analyzer - measure particle size distribution by image analysis
AS-100 Tap Density Tester - measures tapped density by tapping method
AS-200 Scott Volumeter - measures apparent density of powders
AS-300 Hall Flowmeter - measure metal powder flow rate and apparent density
HMK-C1 Blaine Apparatus - measure cement average particle size by air permeability
HMK14-DZ Test Sieve Shaker - determine particle size distribuion by sieving method
Back to Top
Definitions
bulk density tester · density meter · density tester · scott density · bulk density meter · bulk density test · bulk density measurement · measuring bulk density · how to measure bulk density density of powder · scott volumeter accessories · scott volumeter supplier · Apparent Density Tester · Apparent Density vs Bulk Density Bulk Density Tester
Determine Bulk Density of Powder
What is bulk density of a powder?
-The bulk density of a powder is the ratio of the mass of an untapped powder sample and its volume including the contribution of the interparticulate void volume. It is also called apparent density.
What is EP?
-EP is the abbreviation of European Pharmacopoeia, it is a major authoritative in Europe. AS-200 Scott Volumeter complies to specific requiremet of EP. AS-200 scott volumeter has been widely used in pharmacetical industries.
scott density
-scott density is powder bulk density measured by a scott volumeter
bulk density tester
-Also named bulk density volumeter, bulk density meter, it is an apparatus usually metallic that is used to measure the bulk density of powders.
density meter
-It is divided into nuclear density meter, liquid density meter, solid density meter, portable density meter,and held density meter, used to determine physical properties of raw materials i.e. concentration, density and specific gravity. It is neither bulk density meter or apparent density meter mentioned in AS-200 Scott Volumeter.
density tester
-It is same meaning as density meter. It involves specific gravity tester, viscosity tester, pressure tester, density testing, tap density tester calibration, apparent density tester, smoke density tester, opacity tester etc.
Back to Top
Demo Video

Scott Volumeter
Back to Top
Principle
Measurement of the mass of a certain quantity of powder which in a loose condition exactly fills a cup of known volume. The loose condition is obtained by using a scott volumeter, when filling the cup, by cascading the powder over a series of inclined plates in a Scott Volumeter. The ratio between the mass and the volume represents the apparent density. This is the definition of the apparent density obtained by bulk density tester.
Back to Top
Apparatus
Stand and horizontal vibration-free base
Cylindrical/Density Cup
Bottom Funnel
(Top) Funnels
Baffle box
Balance
Spatula
Brush
(Above apparatus are subject to quotation)
Back to Top
Applications
It is applicable to powders including metal powders, compounds, paint, pigment, refractory metals etc.
Back to Top
Manufacturer
Aimsizer Scientifc is a world leading and reliable manufacturer of Scott Volumeters. All the metallic parts are processed and supplied by qualified subcontractor according to International Standards in order to make the unit accurate and robust to satisfy the user's requirement on cost-effective basis.
Back to Top
Frequently Asked Questions
scott volumeter supplier
5 Scott volumeters We'd Like to See
AimSizer Scott Volumeter offer more data and lower prices
Details of AimSizer Scott Volumeterwe envy (11 photos)
-AimSizer offers quality and cost-effective scott volumeter AS-200.
What industries can AS-200 Scott Volumeter be used?
AS-200 Scott volumeter can be used in industries of metallic powders, paint and pigment, pharmaceuticals etc.
What international standards describe the determination of scott density?
-So far there are three major international standards describing the determination of apparent density.One is international standard ISO 3923-2 Metallic powders - Determination of apparent density - Part 2: Scott volumeter method. The other is ASTM B 329 Standard Test Method for Apparent Density of Metal Powders and Compounds Using the Scott Volumeter.The third is USP Chapter 616 Method 2 BULK DENSITY AND TAPPED DENSITY OF POWDERS Measurement in a Volumeter
What is a scott volumetric apparatus (scott volumeter) used for?
-A scott volumeter is used to measure the bulk density of powder featuring free-flowing properties.
Scott volume - USP 616 Bulk density and tapped density of powders - Test Procedure 2
Using a minimum of 25 cm3 of powder with the square cup and 35 cm3 of powder with the cylindrical density cup.
Scott volumeter,bulk density tester,apparent density tester - USP 616 Bulk density and tapped density of powders - Test Procedure 1
-Allow an excess of powder to flow through the apparatus into the sample receiving cup until it overflows.
Scott volumeter,bulk density tester,apparent density tester - USP 616 Bulk density and tapped density of powders - Sample receiving cup
-A standard scott volumeter,bulk density tester,apparent density tester includes a sample receiving cup.
Scott volumeter,bulk density tester,apparent density tester - USP 616 Bulk density and tapped density of powders - Glass baffles
-A standard scott volumeter,bulk density tester,apparent density tester includes a glass baffles.
Scott volumeter,bulk density tester,apparent density tester - USP 616 Bulk density and tapped density of powders - Baffle assembly
-A standard scott volumeter,bulk density tester,apparent density tester includes a baffle assembly.
Scott volumeter,bulk density tester,apparent density tester - USP 616 Bulk density and tapped density of powders - loading funnel
-A standar scott volumeter,bulk densiy tester,apparent density tester includes a loading funnel
Scott volumeter,bulk density tester,apparent density tester - USP 616 Bulk density and tapped density of powders - Apparatus
-A standard scott volumeter,bulk density tester,apparent density tester consists of sieve,powder funnel,loading funnel,baffle assembly,glass baffles, sample receiving cup,stand
USP 616 Bulk Density and Tapped Density of Powders - Bulk Density Method II?
-Method II - Measurement in a Volumeter,Scott Volumeter
USP 616 Bulk Density and Tapped Density of Powders - agglomerates breaking up?
-If necessary break up agglomerates that may have formed during storage,this must be done gently to avoid changing the nature of the material.
USP 616 Bulk Density and Tapped Density of Powders - sieve size?

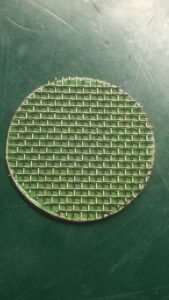

-Pass a quantity of material sufficient to complete the test through a sieve with apertures greater than or equa to 1.0 mm.
What is the main content a test report shall include according to ISO 3923-2 Metalllic powders - Determination of apparent density - Part 2: Scott volumeter method?
-The test report shall include the following information:a) reference to this international standard ISO 3923-2;b) all details necessary for the identification of the test sample;c) the drying procedure,if the powder has been dried;d)the result obtained;e) all operations not specified in this international standard,or regarded as optional;f) details of any occurrence which may have affected the result.
What to do if the scatter between results exceeds 1% of the mean according to ISO 3923-2 Metalllic powders - Determination of apparent density - Part 2: Scott volumeter method?
-The apparent density is given by the formula.Report the arithmetical mean of three determinations to the nearest 0.01 g/cm3,and the highest and the lowest results if the scatter between results exceeds 1% of the mean.
How many test portions is required during determining the apparent density of powder according to ISO 3923-2 Metalllic powders - Determination of apparent density - Part 2: Scott volumeter method?
-Carry out the determinations on three test portions.
To what extent determine the mass of the powder used in scott volumeter method testing the apparent density of a powder according to ISO 3923-2 Metalllic powders - Determination of apparent density - Part 2: Scott volumeter method?
-Determine the mass of the powder to the nearest 0.05 g.
What are instructions when handlling powder after it filling the density cup using a scott volumeter according to ISO 3923-2 Metalllic powders - Determination of apparent density - Part 2: Scott volumeter method?
-After the powder fills the density cup, level the powder with a straight-edge,taking care not to compress or pull out powder and not to disturb or vibrate the cup.
How to do if the light brushing is not sufficient to make the powder flow through the sieve by using a scott volumeter accoring to ISO 3923-2 Metalllic powders - Determination of apparent density - Part 2: Scott volumeter method?
-If light brushing is not sufficient to make the powder flow through the sieve, the Scott volumeter method is not applicable to this powder.
How to do in case of a non-free-flowing powder during powder filling using a scott volumeter according to international standard ISO 3923-2 metallic powders-Determination of apparent density-Part 2 scott volumeter method?
-If the powder is not free flowing,its passage through the sieve may be aided by light brushing with a soft brush.
How to fill the density cup of a scott volumeter according to international standard ISO 3923-2 metallic powders-Determination of apparent density-Part 2 scott volumeter method?
-Pour or feed the powder carefully by means of a spatula into the funnel until the cup is completely filled and powder flows over.
What are requirements on the samples when using a scott volumeter according to ISO 3923-2 metallic powders-Determination of apparent density-Part 2 scott volumeter method?
-In general the powder should be tested in the as-received condition. In certain instances the powder may be dried.However,if the powder is susceptible to oxidation,the drying shall take place in vacuum or in inert gas.If the powder contains volatile substances it shall not be dried.
What is the requirement during sampling by using a scott volumeter/apparent density tester according to ISO 3923-2 metallic powders-Determination of apparent density-Part 2 scott volumeter method?
-The test sample shall be of at least 100 cm3 volume to allow the determination to be carried out on three test portions
What is the function of a balance in a scott volumeter according to ISO 3923-2 Metallic powders-Determination of apparent density - Part 2 Scott Volumeter method?
-The balance used with a scott volumeter should have sufficient capacity, permitting weighing to an accuracy of +- 0.05 g.
What is the requirement on the material of cylindrical cup in a scott volumeter in ISO 3923-2 metallic powders-Determination of apparent density-Part 2 scott volumeter method?
-The density cup and funnels should be made of non-magnetic,corrosion resistant metallic material having sufficient wall thickness and hardness to avoid distortion and excessive wear.The inner surfaces of the cup and funnels should be polished.
What is the function of a cylindrical cup in a scott volumeter according to ISO 3923-2 Metallic powders-Determination of apparent density - Part 2 Scott Volumeter method?
-The cylindrical cup has a capacity of 25+- 0.05 cm3 and an internal diameter of 30+-1 mm.It is used to hold the powder from the funnel and therefore determine the apparent density of the powder with a defined volume.
What is the function of a stand and horizontal vibration-free base in a scott volumeter according to ISO 3923-2 Metallic powders-Determination of apparent density - Part 2 Scott Volumeter method?
-The stand and horizontal vibration free base is used to support the cup, box and funnel coaxially at the heights indicated in the figures.
What is the function of glass baffles in ISO 3923-2 Metallic powders Determination of apparent density part 2 Scott volumeter method?
-The baffles are arranged so that the powder falls on to each of them in turn, thereby breaking the fall and reducing the velocity of the stream of powder.
What is the specifications of a baffle box in scott volumeter/apparent density tester in ISO 3923-2 Metallic powders Determination of apparent density part 2 Scott volumeter method?
-The baffle box of scott volumeter/apparent density tester should have a square section, and containing four glass baffles which may be located and retained by grooves in opposite sides of the box and may thus be removed for ease of cleaning. The baffles are arranged so that the powder falls on to each of them in turn, thereby breaking the fall and reducing the velocity of the stream of powder. It is important that non of the powder can pass between the upper edge of the glass baffles and the sides of the baffle box. It is also important that the lower edges of the glass baffles are either in line or slightly overlap in a vertical plane.
What is the size or dimension of a funnel used in scott volumeter/apparent density tester in ISO 3923-2 Metallic powders Determination of apparent density part 2 Scott volumeter method?
-The funnel should have a large and a small conical section separated by a cylindrical section and incorporating a brass sieve of aperture size 1,18 mm.
What are major apparatus in a scott volumeter according to ISO 3923-2 Metallic powders Determination of apparent density part 2 Scott volumeter method?
-There are following apparatus necessary in a scott volumeter in determinating apparent density of powders:funnel,baffle box,stand and horizontal vibration-free base,cylindrical cup,balance.
What are principal symbols and designations used in ISO 3923-2 Metallic powders Determination of apparent density part 2 Scott volumeter method?
-1.apparent density of metallic powders 2.apparent density obtained by the Scott volumeter method 3.mass of the powder 4.volume of the cup
How to obtain a loose condition in a scott volumeter method determining apparent density?
-The loose condition is obtained, when filling the cup, by cascading the powder over a series of inclined plates in a scott volumeter.
What is principle of scott volumeter method in determining apparent density?
-Measurement of the mass of a certain quantity of powder which in a loose condition exactly fills a cup of known volume.The ratio between the mass and the volume represents the apparent density.
What are related international standards of ISO 3923-2 Metallic powders - Determination of apparent density - Part 2: Scott volumeter method?
-There are two related international standards of ISO 3923-2: one is ISO 3923-1 Metallic powders - Determination of apparent density - Part 1: Funnel method.The other is ISO 3923-3, Metallic powders - Determination of apparent density - Part 3: Oscillating funnel method.
What is ISO 3923 part 3?
-Part 3 of this international standard ISO 3923 specifies the oscillating funnel method for the determination of apparent density of such powders, and this is preferred since it gives better precision,but it cannot be used in cases where the powder may change its properties due to the vibration action applied to the powder during testing.
What is the application of a Scott Volume analyzer designated in ISO 3923-2?
-ISO 3923 specifies the Scott volumeter method for the determination of the apparent density of metallic powders.It is applicable to powders that will not flow freely through a 5mm orifice(see ISO 3923-1).
