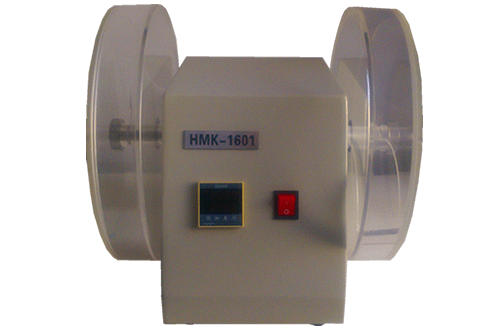

HMK-1601 Tablet Friability Tester

Overview

HMK-1601 Tablet Friability Tester is a type of Roche friabilator. It is an apparatus used to determine the friability of compressed, uncoated tablets in pharmaceutical industry.

hmk-1601-tablet-friability-tester-price-china-manufacturers

Tabelt friability is tested by weighing tablets first then put them into a drum with specific internal diameter and depth, rotate the drum 100 times at the fixed rate of 25 rpm, and the tablets tumble. Re-weigh the tablets and calculate the weight loss, tablets with weigh loss not more than 1% pass the test, those tablets that obviously cracked, cleaved, or broken fails the test.
HMK-1601 friabilator tests resistance of uncoated tablets to the shock and abrasion happenned during manufacturing, packing, and shipping operations. During above opeatioins the uncoated tablets may be capped, chipped, abrasive or even broken. Measurement of tablet friability supplements other physical strength measurements such as tablet crushing strength.
HMK-1601 tablet friability apparatus is a friability test apparatus completely complying to internatioanl standard USP, E.P. and JP.
The friability test is carried out by using a friability tester that uses a drum in USP specified internal diameter and depth of transparent synthetic polymer with polished internal surfaces. The tablets are tumbled at each turn of the drum by a curved projection in USP specified inside radius that extends from the middle of the drum to the outer wall. The drum is attached to the horizontal axis of a device that rotates at USP specified rpm. Thus, at each turn the tablets roll or slide and fall onto the drum wall or onto each other, friable tablet (>1%) does not pass the test.

Pictures


metal powder hall flow, apparent density

Datasheet

Specifications
  • - Standards: meet USP, E.P. JP standards
  • - Number of drum: 1 or 2
  • - Rotation speed: 25±1 revolution/minute
  • - Timing: 0-9:59:59 minutes alternative countdown
  • - Wheel Drum Size:
  • Inside diameter: 286 mm
  • Depth: 39 mm
  • - Power: 220±10%V 50Hz/110±10% 60Hz 15W
Features
  • - One side of the drum is removable
  • - Easy, safe and fast operation
  • - Transparent synthetic polymer with polished internal surfaces avoid static build-up.
  • - Accurate results
  • - Fixed speed 25 rpm and variable speed 20 to 60 rpm available
  • - Built-in timer
  • - USP, E.P. and JP compliant by standardized and reproducible method
  • - Available for 1 or 2 test drums
  • - Available with friability drum and abrasion drum together
  • - Available for switching leg for 10° adjustment
