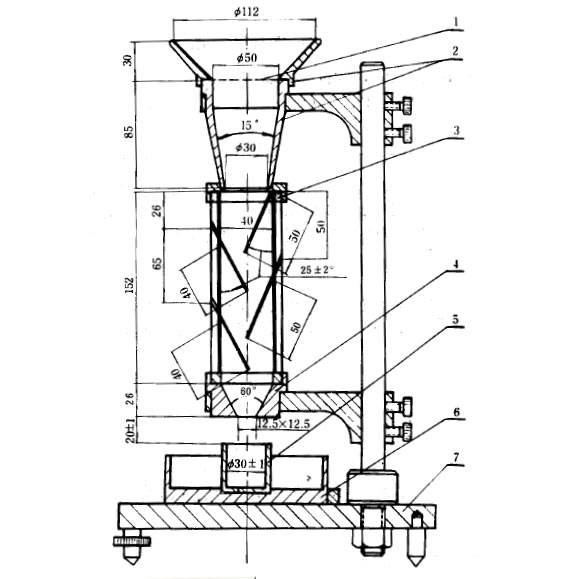

● Top Funnel Complex: Made up of two cone-shaped stainless funnels, between them a stainless sieve (18-mesh) is set in.
● Chamber: the transect is square, 4 stainless steel chips are set in the aluminum frame, the front and back side is synthetic glass; stainless steel boards are easily pulled out for easy cleaning.
● Square Funnel: Made up of stainless steel Chip (Thickness 1mm) at angle of 60 degree, bottom size is 12.5mm×12.5mm
● Cylindrical Receiving Cup: volume 25ml, net weight 46±1,made in stainless steel
● Iron Base：Support top funnel complex, chamber, square funnel and cylinder cup.
● Balance:Weigh powder to the accuracy of 0.05g (Necessary but not included)
